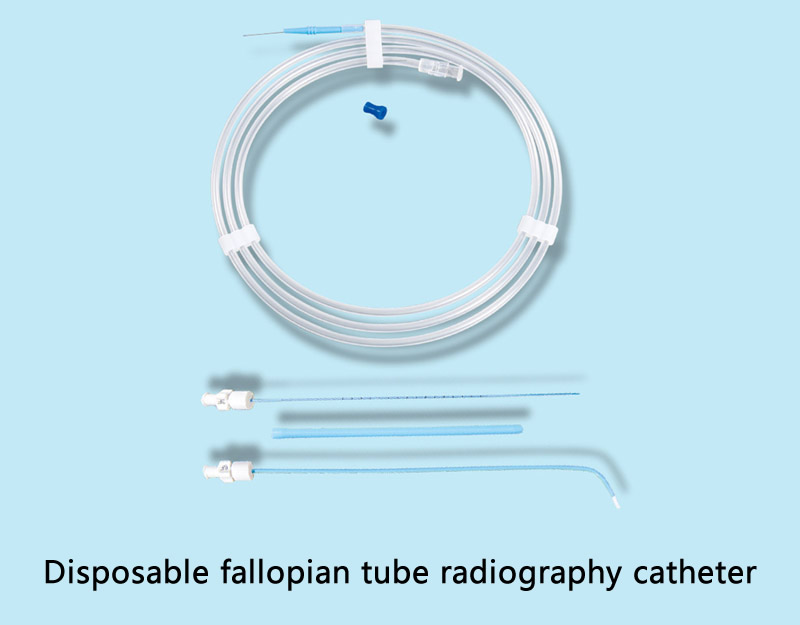

Disposable fallopian tube catheter

First, the product usage:
Through hysteroscopy or DSA, ultrasound instrument intervention, transvaginal into the uterine cavity, for uterine interstitial, fallopian tube for angiography, dredge and treatment.

Second, product features:
1. Patented products have passed CE certification.
2. The catheter adopts block polyetheramide elastomer material, which has excellent flexibility, fatigue resistance, resilience, weather resistance, lubricity and good biocompatibility.

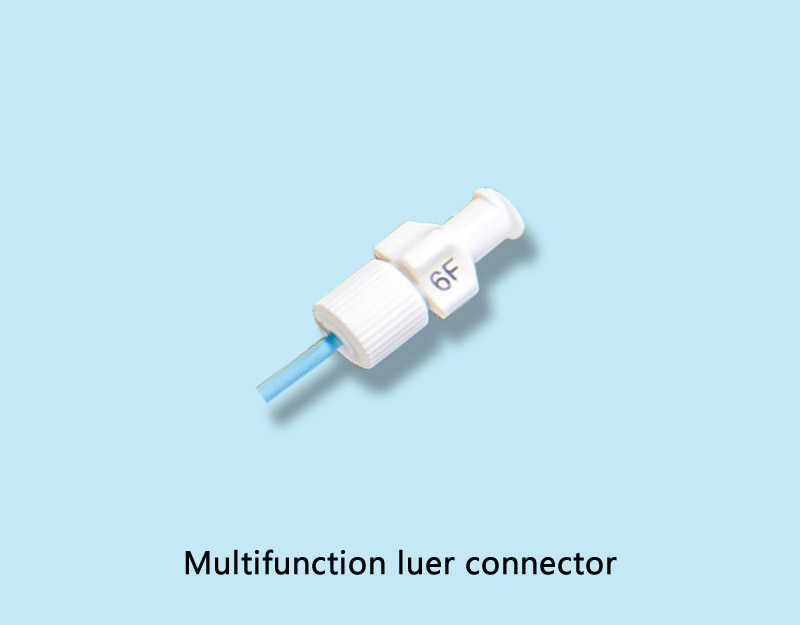

3. The multi-functional Luer connector not only ensures the normal connection and perfusion, but also satisfies the guide wire and the injection.
4. The position of the injection tube is fixed and the liquid backflow is prevented.
5. The wall of the conduit is made of metal braided mesh to ensure the reinforcement and coaxiality of the catheter during push-pull and twisting during use.

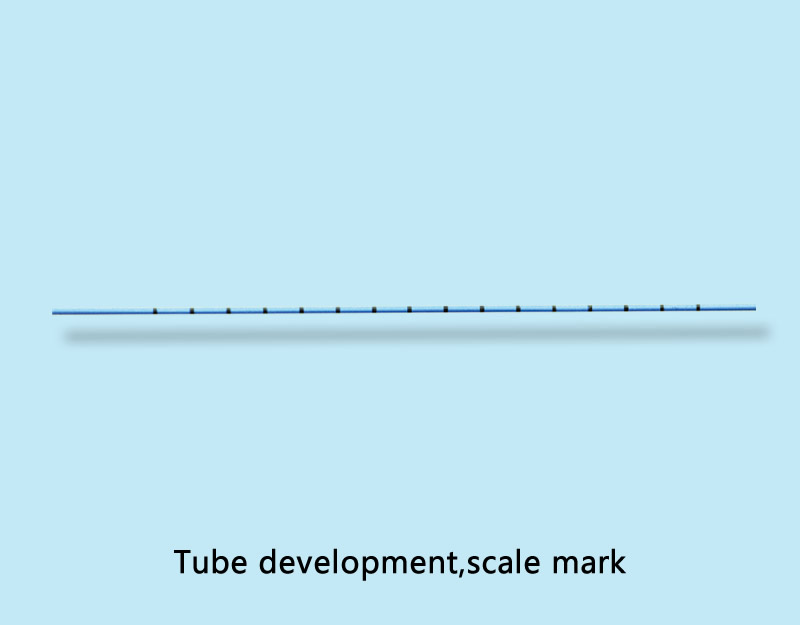

6. The tube body has a scale mark and enhanced development, which is convenient for timely grasping the position of the tube body into the human body.

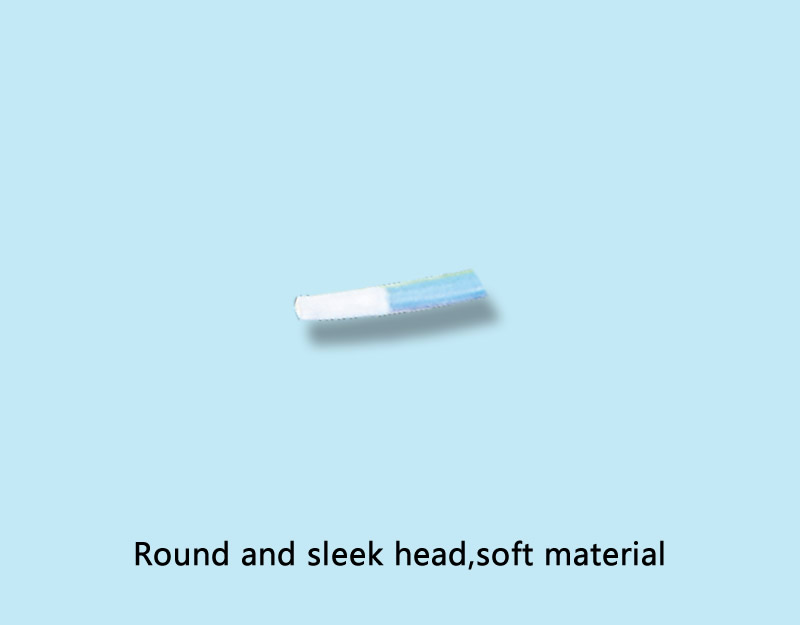

7. The tip of the catheter is made of soft material and smoothed to reduce the damage to the fallopian tube.
8. According to the use situation, it can be flexibly combined to improve the treatment effect and reduce the cost.



Third, the specification model:

Applicable range

Configuration

Remark

DSA or ultrasound instrument
intervention

Injection tube, Dredge treatment
tube,guide wire, guide tube

Can be selected according to actual use

Hysteroscopic

Injection tube,dredge treatment tube,
guide wire, base


Commodity

Specification

Length(mm)

Injection tube

F2、F3、F4、F5

200、250、300、350、400、450、500、550、600、650

Dredge treatment tube

F4、F5、F5.5、F6、F7、F8、F9、F10、F11、F12

150、200、250、300、350、400、450、500、600

Guide wire

0.38MM(0.015”)     0.45MM(0.018”)
0.80MM(0.032”)     0.90MM(0.035”)
0.95MM(0.038”)


≥400(common 700)

Guide wire

F8、F9、F10、F12、F14、
F16、F18

≥100(common 135、250)

Foundation base

Standard
